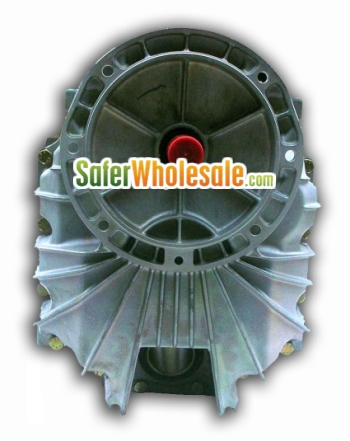

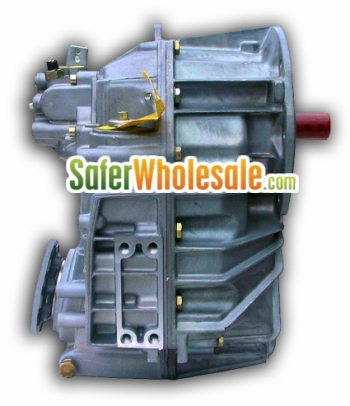

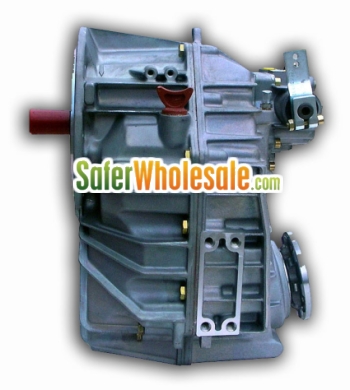

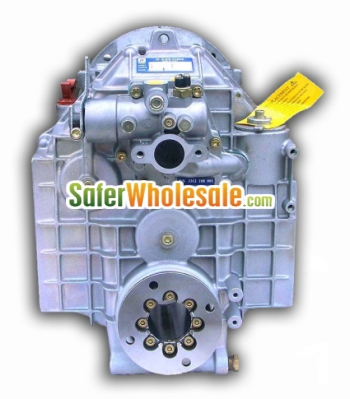

ZF Hurth ZF-63-IV
Marine Transmission  - ZF-63-IV available in multiple gear ratios; 12° down angle and 100% power in forward or reverse rotation.
- Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
- Suitable for high performance applications in luxury motor yachts, sport fishers, express cruisers etc.
- Robust design also withstands continuous duty in workboat applications.
- Fully works tested, reliable and simple to install.
- Design, manufacture and quality control standards comply with ISO 9001.
Compatible with all 3.0L, 4.3L, 5.0L, 5.7L, 6.0L, 7.4L, 8.1L and 8.2L engines and propulsion systems rated at 475 hp or less.
CALL 1-866-606-3991
Features:- Lightweight and robust aluminum alloy casing (sea water resistant) .
- Case hardened and precisely ground gear teeth for long life and smooth running .
- Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead .
- B/W connection integrated with casing .
- Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable .
- Suitable for twin engine installations (same torque capacity in ahead or astern mode. Reduction Ratios in ahead or astern are very close) .
- Replaceable oil filter cartridge.
- Compact, space saving design; 12° vee-angle and beveloid gear .
- "SUPERSHIFT" clutch control.
