Solar Powered Plus Gate
Operator for Dual Swing Gates
The Dual Swing Dual Gate Operator is designed for residential/commercial applications. Stay
warm and dry in your vehicle. This Dual Swing Opener will handle dual
swinging gates up to 20 ft. in length and weighing up to 1320lb (10ft
and 660 lb per leaf). This operator has two powerful 24VDC motors,
which provide exceptional starting torque and features soft start/stop
operation. This promotes longer gate and operator life, as well as
dependable performance.
No power? No problem! Optional Built-in
battery backup provides seamless operation of the gate operator and all
DC control and sensing devices in the event of a power loss.
To
simplify installation, may be installed with
low-cost, low-voltage wiring or in remote locations using our optional
10W or 20W Solar Panel.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Features:
- Open and close the gate by remote control and keypad
- Soft start, Soft stop
- Emergency release key in case of power failure
- Dual/Single gate running mode
- Optional master and slave gate running
- Adjustable opening/closing interval between master and slave gate
- Stop/Reverse in case of obstruction during gate opening/closing.
- The force of the motor can be programmed Optional photocell protection
- Built in adjustable auto-close (programmable from 0-99 sec)
- Digital display indicates the running situation and setting menu
- Reliable electromagnetism limit for easy adjustments
ORDER ONLINE NOW OR
CALL 1-866-606-3991

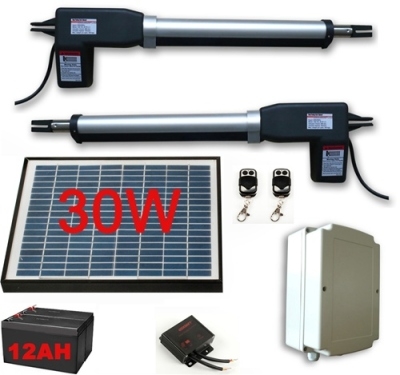

Package Includes:
- Two Actuators
- 30W24V Solar Panel
- Bracket for solar panel
- 12AH battery
- Battery Box
- 1.6A bat. Adapter
- Charge Controller
- Manual
- 2 Remotes
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Click Image For Larger View
Specifications:
-
Motor:24 V DC, 80W per actuator, 3A current
Power supply: 110V/60Hz (or 220V/50Hz)
Actuator speed: 1.6 cm/second (.63”/second)
Actuator travel: 400mm (15.75”)
Max.Weight of each gate: 300 kgs (660 lbs)
Max.Width of each gate: 3 m (10ft)
Open/closing running time: programmable (from 0 to 99 seconds)
Autoclosing duration: programmable (from 0 to 99 seconds)
Ambient temperature: -22c- +55c
Protection class: IP44
