Solar Kit Sliding Gate Opener For Sliding Gates Up to 60-Feet Long and 1400-Pounds
Designed with a 120V AC (3/4 HP equivalent) motor, this gear rack driven sliding gate opener provides exceptional starting torque and continuous operation, making it ideal for most applications. Opens gates up to 1,400 lbs or 60 Ft in length.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Features:
- Powerful 24V DC Motor opens gates up to 1400 lb or 60 Ft in length
- Soft start and Soft stop function
- 2 Remotes included
- User programmable and user erasable remote codes
- RF hopping code technology prevents your remote code being accessible to others
- Auto-Close Feature (0, 30, 60, 90 seconds)
- Power Supply: AC 120V/DC24V (compatible with a solar power source of energy)
- Operating Time: 0 - 44 seconds
- For your safety, this model will stop and reverse if is encounters an obstruction on closing and stop when it encounters an obstruction on opening
- Manual key release design for emergency purposes
- Pedestrian mode
- Optional accessories: keypad LM105, photocell LM102, alarm lamp LM140, solar panel LM109, back up battery LM125, mounting post LM107, video door phone LM162, wall push button LM147, loop car detector LM155, and many others.

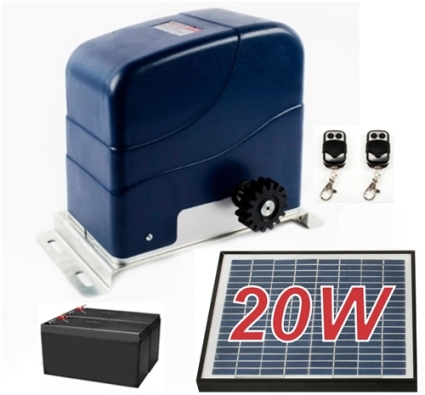

Includes:
- 1 (One) Sliding Gate Opener Unit
- 1 (One) Set of ALEKO® 13Ft Nylon Gear Racks reinforced with a metal insert 3.3 Ft each, 4pcs
- 1 (One) Mounting metal base
- 2 (Two) 433MHz remotes LM122
- 1 (One) Set of accessories and mounting hardware for easy installation
- 1 (One) User Manual with step by step installation instructions
- 1 (One) ALEKO® 20W 24V Solar Panel
- 1 (One) ALEKO® LM118 24V Solar Charge Controller for Solar Panels
- 1 (One) Set 2x7AH Batteries LM125(2x7AH)
- 1 (One) Battery box for 2x7AH batteries
Specifications:
- Basic Kit Sliding Gate Opener For Sliding Gates Up to 60-Feet Long and 1300-Pounds
- Power supply: 120V/60HZ or 230V/50HZ
- Motor: 24VDC
- Absorbed power: 180W
- Gate moving speed: (7.9“/second) 20 cm/second
- Max gate weight: 1400LB/600KGS
- Max torque: 12Nm
- Environmental conditions: from -15°C to +40°C
- Protection class: IP44
- Dimensions: 46.5×29.5×50 CM
