Sliding Gate Opener
Residential/Commercial Medium-Heavy
Duty Low Stand Designed with a 120V AC (2 HP equivalent)
motor, this chain driven sliding gate opener provides exceptional
starting torque and continuous operation, making it ideal for most
applications. Opens gates up to 2,000 lbs or 60 Ft in length.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Features:
- Sliding Gate Opener opens super heavy gates up to 2000lbs (1000Kg)
- Supports up to 100 Remotes,
- 2 included User programmable and user erasable remote codes
- RF hopping code technology prevents your remote code being accessible to others
- Auto-Close Feature
- Power Supply: AC 110V
- Operating Time: 20 seconds ~ 100 seconds
- For your safety, this model will stop and reverse if is encounters an obstruction on closing and stop when it encounters an obstruction on opening
- Manual key release design for emergency purposes
- Auto-close feature is available for this operator
- Pedestrian mode
- AC Single Phase Motor
- Control panel with interface for photocells, loop detector,
- IC card reader and alarm lamp
ORDER ONLINE NOW OR
CALL 1-866-606-3991  Specifications:
- Power supply AC 110V60Hz
- Opening Gate Speed 12m/min
- Output torque >= 27 N m
- Motor speed 1400 rpm
- Limit switch Mech limit switch
- Remote control distance >= 30 m
- Weight 35.7lb
- Noise <56 dB
- Environmental temp -50°C ~ +65°C
- Max gate weight 2200Lb or 1000KG
- Output shaft 58.5 mm
- Output power of motor 700W
ORDER ONLINE NOW OR
CALL 1-866-606-3991

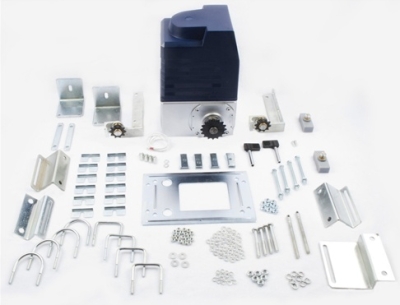

What's Included:
- Sliding Gate Opener Unit

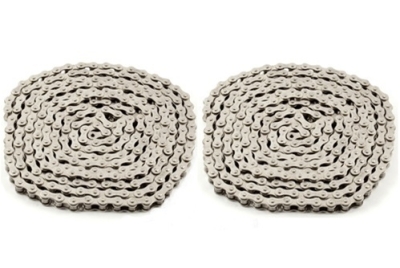

- 20 Ft Chain
- Short Mounting Base
- 2 Remotes
- Manual with step by step installation instructions
- Full accessories and mounting hardware for easy installation
