Residential Medium-Duty
AC/DC Slide Gate Operator Designed
with a 120V AC (1/2HP equivalent)
motor, this sliding gate opener provides exceptional starting torque and continuous
operation, making it ideal for most applications. Opens gates up to 900 lbs and up to 30 ft. in length, 13 ft gear rack tracks is
included.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Features:
- Powerful 24V DC Motor opens gates up to 900 lb or 30 Ft in length
- Soft start and Soft stop function
- 2 Remotes included
- User programmable and user erasable remote codes
- RF hopping code technology prevents your remote code being accessible to others
- Auto-Close Feature (0, 30, 60, 90 seconds)
- Power Supply: AC 120V/DC24V (compatible with a solar power source of energy)
- Operating Time: 0 - 44 seconds
- For
your safety, this model will stop and reverse if is encounters an
obstruction on closing and stop when it encounters an obstruction on
opening
- Manual key release design for emergency purposes
- Pedestrian mode
ORDER ONLINE NOW OR
CALL 1-866-606-3991

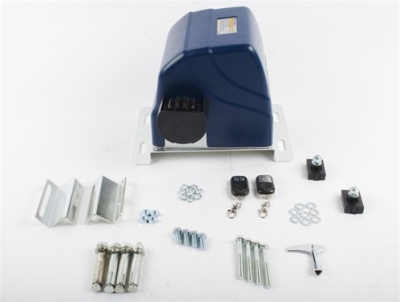

Package Includes:
- Sliding Gate Opener Unit
- 13 Ft Gear Racks
- Mounting Base
- 2 Remotes
- Manual with step by step installation instructions
- Mounting hardware for easy installation
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Specifications:
- Power supply: 120V/60HZ or DC24V
- Motor: 24VDC
- Absorbed power: 120W
- Gate moving speed: (7.9“/second) 20 cm/second
- Max gate weight: 900LB/400KGS
- Max torque: 8Nm
- Environmental conditions: from -15°C to +40°C
- Protection class: IP44
- Dimensions: 30×20×23 CM
