This Residential/Commercial Solar Dual Swing Gate Opener + Accessories is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Dual Swing Opener will handle dual swinging gates up to 16 ft in length and weighing up to 900 lb (8 ft and 450 lb per leaf). The Residential/Commercial Solar Dual Swing Gate Opener + Accessories has powerful 24VDC motors, which provide exceptional starting torque and features soft start/stop operation. This promotes longer gate and operator life, as well as dependable performance.

Features:

• Open and close the gate by remote control and keypad
• Soft start, Soft stop
• Emergency release key in case of power failure
• Dual/Single gate running mode
• Optional master and slave gate running
• Adjustable opening/closing interval between master and slave gate
• Stop/Reverse in case of obstruction during gate opening/closing.
• The force of the motor can be programmed
• Built in adjustable auto-close (programmable from 0-99 sec)
• Digital display indicates the running situation and setting menu
• Reliable electromagnetism limit for easy to adjust

ORDER ONLINE NOW OR
CALL 1-866-606-3991

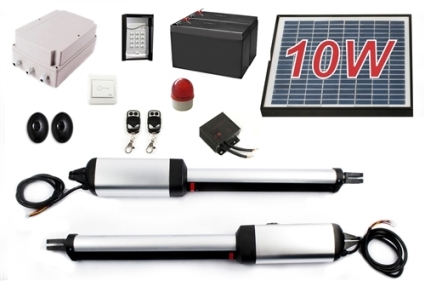

Package Includes:

• 2 (Two) Actuators for Dual Gate
• 1 Control Box
• 2 Remote Controls
• 1 Emergency Release Key
• 1 Set of Mounting Brackets and Hardware
• 1 Alarm Lamp
• 1 Push Button
• 1 Keypad
• 1 Set of Photo Cell Infrared Sensor Photo Eye
• 1 10W Solar Panel 24V DC
• 1 Solar Charge Controller
• 2 Battery 12V
• 1 Battery Box
• 1 8.5x11” warning Sign
• 1 Quick Programming Guide CD
• 1Installation and Operating Manual

ORDER ONLINE NOW OR
CALL 1-866-606-3991

Specifications:

• Motor: 24 V DC
• 80W per actuator
• 3A current

• Power supply: 110V/60Hz (or 220V/50Hz)
• Actuator speed: 1.6 cm/second (.63”/second)
• Actuator travel: 400mm (15.75”)
• Max. Weight of each gate: 450 lb (200 kg) Max.
• Max. Width of each gate: 2.4 m (8 ft)
• Open/closing running time: programmable (from 0 to 99 seconds)
• Autoclosing duration: programmable (from 0 to 99 seconds)
• Ambient temperature: 5 F - 130 F (-22c- +55c)

• Protection class: IP44
