Residential/Commercial
Medium/Heavy-Duty AC/DC
Single Swing Gate Operator

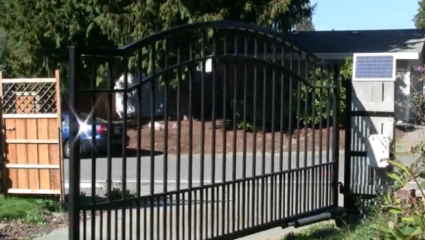

This Single Swing Opener will handle single swinging gates up to 8 ft.
in length or weighing up to 650 lb, and may be installed with Solar Panel
and back up batteries.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
 Features:
- Open and close the gate by remote control and keypad
- Soft start, Soft stop
- Emergency release key in case of power failure
- Dual/Single gate running mode
- Optional master and slave gate running
- Adjustable opening/closing interval between master and slave gate
- Stop/Reverse in case of obstruction during gate opening/closing.
- The force of the motor can be programmed
- Optional photocell protection
- Built in adjustable auto-close (programmable from 0-99 sec)
- Digital display indicates the running situation and setting menu
- Reliable electromagnetism limit for easy to adjust
ORDER ONLINE NOW OR
CALL 1-866-606-3991

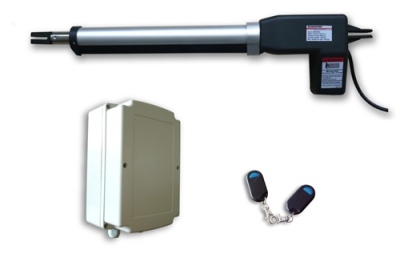

Package Includes:
- 1 (One) Actuator for Single Gate
- 1 Control Box
- 2 Remote Controls
- 1 Emergency Release Key
- Mounting Brackets and Hardware
- 1 8.5x11” warning Sign
- Quick Programming Guide CD
- Installation and Operating Manual
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Specifications:
- Motor: 24 V DC
- 80W actuator
- 3A current
Power supply: 110V/60Hz (or 220V/50Hz)
- Actuator speed: 1.6 cm/second (.63”/second)
- Actuator travel: 400mm (15.75”)
- Max.Weight gate: 300 kgs (660 lbs)
- Max.Width gate: 3 m (10ft)
- Open/closing running time: programmable (from 0 to 99 seconds)
- Autoclosing duration: programmable (from 0 to 99 seconds)
- Ambient temperature: -22c- +55c
Protection class: IP44
