Residential/Commercial 30W Solar Single Swing Gate Opener
This
Residential/Commercial 30W Solar Single Swing Gate Opener
is designed for residential/commercial applications. Stay
warm and dry in your vehicle. This Single Swing Opener will handle
single
swinging gates up to 8 ft in length and weighing up to 450 lb. The
Residential/Commercial 30W Solar Single Swing Gate Opener has a powerful 24VDC motor, which provides exceptional starting torque
and features soft start/stop operation. This promotes longer gate and
operator life, as well as dependable performance. ORDER ONLINE NOW OR CALL 1-866-606-3991
Features:
- Open and close the gate by remote control and keypad
- Soft start, Soft stop
- Emergency release key in case of power failure
- Dual/Single gate running mode
- Optional master and slave gate running
- Adjustable opening/closing interval between master and slave gate
- Stop/Reverse in case of obstruction during gate opening/closing.
- The force of the motor can be programmed
- Optional photocell protection
- Built in adjustable auto-close (programmable from 0-99 sec)
- Digital display indicates the running situation and setting menu
- Reliable electromagnetism limit for easy to adjust
ORDER ONLINE NOW OR

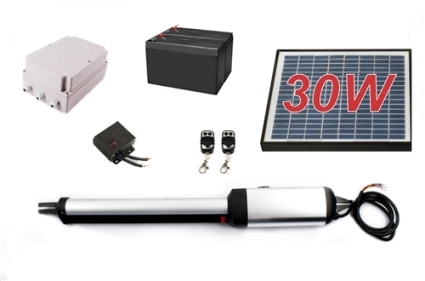

CALL 1-866-606-3991 Package Includes:
- 1 (One) Actuator
- 1 Control Box
- 2 Remote Controls
- 1 Set of mounting Brackets and Hardware
- 1 8.5x11” Warning Sign
- 1 20W Solar Panel 24V DC
- 1 10W Solar Panel 24V DC
- 1 Solar Charge Controller
- 2 Battery 12V
- 1 Battery Box
- 1 Quick Programming Guide CD
- 1 Installation and Operating Manual
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Specifications:
Motor: 24 V DC 80W per actuator 3A current
Power supply: 110V/60Hz (or 220V/50Hz) Actuator speed: 1.6 cm/second (.63”/second) Actuator travel: 400mm (15.75”) Max. Weight of each gate: 450 lb (200 kg)
Max. Max. Width of each gate: 2.4 m (8 ft)
Open/closing running time: programmable (from 0 to 99 seconds) Autoclosing duration: programmable (from 0 to 99 seconds) Ambient temperature: 5 F - 130 F
(-22c- +55c)
Protection class: IP44
