This Residential/Commercial 20W Solar Single Swing Gate Opener is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Single Swing Opener will handle single swinging gates up to 8 ft in length and weighing up to 450 lb. The Residential/Commercial 20W Solar Single Swing Gate Opener has a powerful 24VDC motor, which provides exceptional starting torque and features soft start/stop operation. This promotes longer gate and operator life, as well as dependable performance.

Features:

• Open and close the gate by remote control and keypad
• Soft start, Soft stop
• Emergency release key in case of power failure
• Dual/Single gate running mode
• Optional master and slave gate running
• Adjustable opening/closing interval between master and slave gate
• Stop/Reverse in case of obstruction during gate opening/closing.
• The force of the motor can be programmed
• Built in adjustable auto-close (programmable from 0-99 sec)
• Digital display indicates the running situation and setting menu
• Reliable electromagnetism limit for easy to adjust

ORDER ONLINE NOW OR
CALL 1-866-606-3991

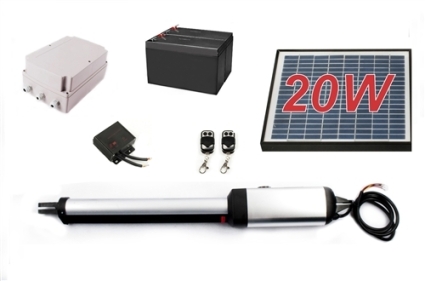

Package Includes:

• 1 (One) Actuators
• 1 Control Box
• 2 Remote Controls
• 1 Set of mounting Brackets and Hardware
• 1 8.5x11” Warning Sign
• 1 20W Solar Panel 24V DC
• 1 Solar Charge Controller
• 2 Battery 12V
• 1 Battery Box
• 1 Quick Programming Guide CD
• 1 Installation and Operating Manual

ORDER ONLINE NOW OR
CALL 1-866-606-3991

Specifications:

• Motor: 24 V DC
• 80W per actuator
• 3A current

• Power supply: 110V/60Hz (or 220V/50Hz)
• Actuator speed: 1.6 cm/second (.63”/second)
• Actuator travel: 400mm (15.75”)
• Max. Weight of each gate: 450 lb (200 kg) Max.
• Max. Width of each gate: 2.4 m (8 ft)
• Open/closing running time: programmable (from 0 to 99 seconds)
• Autoclosing duration: programmable (from 0 to 99 seconds)
• Ambient temperature: 5 F - 130 F (-22c- +55c)

• Protection class: IP44
