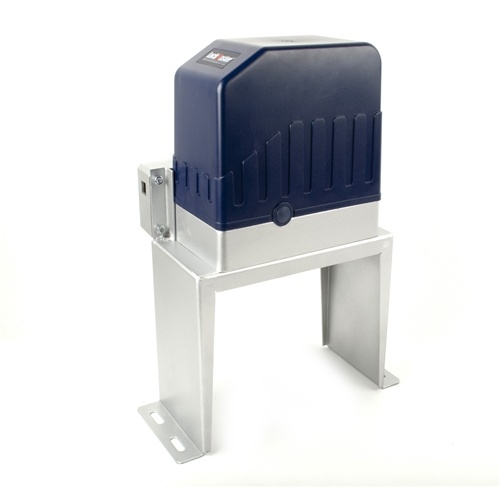

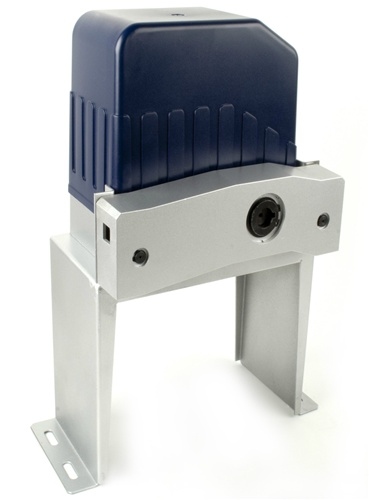

Residential/Commercial Medium-Heavy
Duty 120V AC Slide Gate Opener Designed with a 120V AC (3/4 HP equivalent)
motor, this chain driven sliding gate opener provides exceptional
starting torque and continuous operation, making it ideal for most
applications. Opens gates up to 1,400 lbs or 40 Ft in length.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Features:
- Opens gates up to 1400 lb or 40 Ft in length
- Radio receiver built-in
- Supports up to 100 Remotes, 2 included
- User programmable and user erasable remote codes
- RF hopping code technology prevents your remote code being accessible to others
- Auto-Close Feature
- Power Supply: AC 120V
- Operating Time: 0 - 44 seconds
- For your safety, this model will stop and reverse if is encounters an obstruction on closing and stop when it encounters an obstruction on opening
- Manual key release design for emergency purposes
- Pedestrian mode
- Single Phase Motor
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Specifications:
- Power supply - AC 110 x (1±10%)V, 60Hz
- Motor Speed - 1680 r/min
- Gate moving speed - 10m/min
- Required electrical circuit - 10A
- Output torque - 14N·m
- Auto close time - 0 ~44 sec
- Remote control mode - Single Button
- Environmental temperature -68°F~+122°F
- Main unit dimension - 263x240x153mm
- MCU logic voltage - DC5V
- Net weight - 47 Lb
ORDER ONLINE NOW OR
CALL 1-866-606-3991

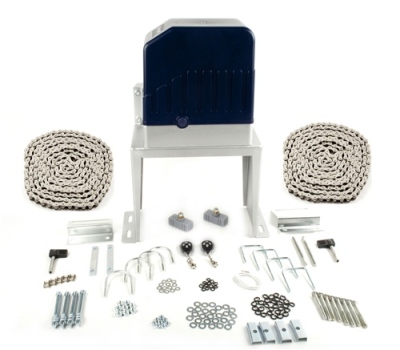

What's Included:
- Sliding Gate Opener Unit
- 20 Ft Chain
- Mounting Base
- 2 Remotes
- Manual with step by step installation instructions
- Full accessories and mounting hardware for easy installation
ORDER ONLINE NOW OR
CALL 1-866-606-3991

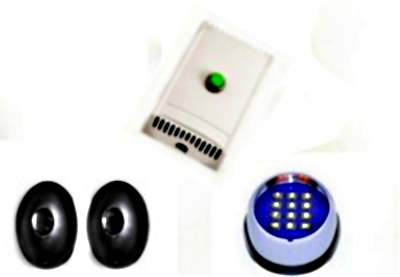

Optional Accessory Kit:
- Wireless Keypad
- Photocells
- Push Button
