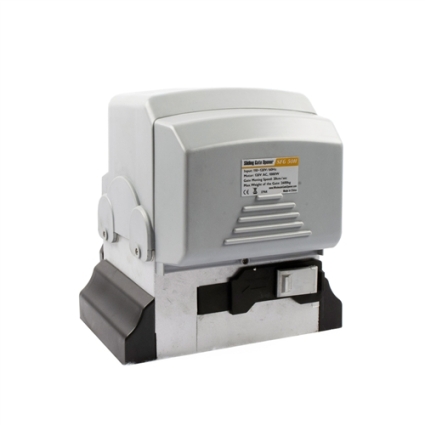

Heavy-Duty Sliding Gate Opener For Sliding Gates Up to 60-Feet Long and 5700-Pounds
Designed with a 120V AC (4HP equivalent)
motor, this chain driven sliding gate opener provides exceptional
starting torque and continuous operation, making it ideal for most
applications. Opens gates up to 5,700 lbs and up to 45 ft. in length, 20
ft chain is included. If your gates more 20 ft. in length just purchase
an extra chain.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Features:
- Easy to install.
- Soft start and soft stop
- Midway mode
- Get the desired chain tension by adjusting the chain bolts.
- Reliable rolling code technology
- Emergency release key in case of power failure
- Stop/Reverse in case of obstruction during gate opening/closing
- Built in adjustable auto-close (0, 30, 60, 90 seconds)
- Built in max. 90 seconds Motor running time (MRT) for multiple safety protection
- Reliable electromagnetism limit for easy adjustment
- Optional accessories
ORDER ONLINE NOW OR
CALL 1-866-606-3991  Specifications:
- Power supply: 120V/60HZ
- Current: 16A
- Motor: 120VAC
- Motor Speed: 1380rpm
- Absorbed power: 1000W
- Gate moving speed: (7.9“/second) 20 cm/second
- Max gate weight: 3200Kg / 5700Lb
- Max torque: SCG21H: 35Nm
- Environmental conditions: From -20°F to +140°F
- Protection class: IP44
- Shipping Measurement: 19×14×20 in
- Net/Gross Weight: 60.5 / 64 lbs
ORDER ONLINE NOW OR
CALL 1-866-606-3991

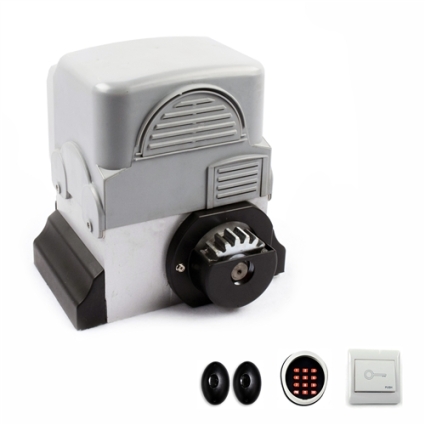

What's Included:
- Sliding Gate Opener Unit
- 20 ft gear rack tracks is included; if your gates more 20ft in length just purchase an extra racks in "Gear Racks" section
- 2 Remotes
- Manual with step by step installation instructions
- Mounting hardware for easy installation
- 2 Years Warranty
