This Heavy Duty Dual Swing Gate Opener is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Dual Swing Opener will handle dual swinging gates up to 16 ft in length and weighing up to 1300 lb (12 ft and 650 lb per leaf). The Heavy Duty Dual Swing Gate Opener has powerful 24VDC motors, which provide exceptional starting torque and features soft start/stop operation. This promotes longer gate and operator life, as well as dependable performance.

Features:

• Open and close the gate by remote control and keypad
• Soft start, Soft stop
• Emergency release key in case of power failure
• Dual/Single gate running mode
• Optional master and slave gate running
• Adjustable opening/closing interval between master and slave gate
• Stop/Reverse in case of obstruction during gate opening/closing.
• The force of the motor can be programmed
• Built in adjustable auto-close (programmable from 0-99 sec)
• Digital display indicates the running situation and setting menu
• Reliable electromagnetism limit for easy to adjust

ORDER ONLINE NOW OR
CALL 1-866-606-3991

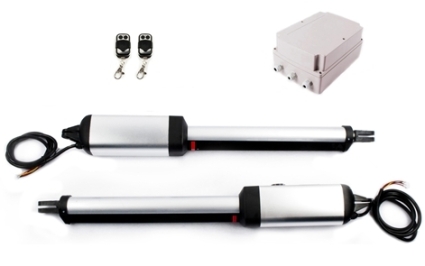

Package Includes:

• 2 (Two) Actuators
• 1 Control Box
• 2 Remote Controls
• 1 Set of mounting Brackets and Hardware
• 2 8.5x11” warning Sign
• 1 Quick Programming Guide CD
• 1 Installation and Operating Manual

ORDER ONLINE NOW OR
CALL 1-866-606-3991

Specifications:

• Motor: 24 V DC
• 80W per actuator
• 3A current Power supply: 110V/60Hz (or 220V/50Hz)
• Actuator speed: 1.6 cm/second (.63”/second)
• Actuator travel: 400mm (15.75”)
• Max. Weight per gate: 300 kgs (660 lbs)
  Max. Width per gate: 3 m (10ft)
• Open/closing running time: programmable (from 0 to 99 seconds)
• Autoclosing duration: programmable (from 0 to 99 seconds)
• Ambient temperature: 5 F - 130 F (-22c- +55c)

• Protection class: IP44
