This Heavy Duty 30W Solar Single Swing Gate Opener + Accessories is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Single Swing Opener will handle single swinging gates up to 8 ft in length and weighing up to 650 lb. The Heavy Duty 30W Solar Single Swing Gate Opener + Accessories has powerful 24VDC motors, which provide exceptional starting torque and features soft start/stop operation. This promotes longer gate and operator life, as well as dependable performance.

Features:

• Open and close the gate by remote control and keypad
• Soft start, Soft stop
• Emergency release key in case of power failure
• Dual/Single gate running mode
• Optional master and slave gate running
• Adjustable opening/closing interval between master and slave gate
• Stop/Reverse in case of obstruction during gate opening/closing.
• The force of the motor can be programmed
• Built in adjustable auto-close (programmable from 0-99 sec)
• Digital display indicates the running situation and setting menu
• Reliable electromagnetism limit for easy to adjust

ORDER ONLINE NOW OR
CALL 1-866-606-3991

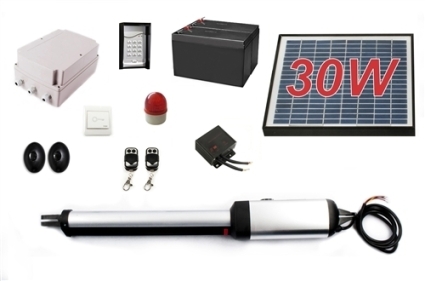

Package Includes:

• 1 (One) Actuator for Single Gate
• 1 Control Box
• 2 Remote Controls
• 1 Set of mounting Brackets and Hardware
• 2 8.5x11” Warning Sign
• 1 Alarm Lamp 24V DC
• 1 Wired Keypad 24V DC
• 1 Push-button
• 1 Set of Photocells
• 1 20W Solar Panel 24V DC
• 1 10W Solar Panel 24V DC
• 1 Solar Charge Controller
• 2 Battery 12V
• 1 Battery Box
• 1 Quick Programming Guide CD
• 1 Installation and Operating Manual

ORDER ONLINE NOW OR
CALL 1-866-606-3991

Specifications:

• Motor: 24 V DC
• 80W per actuator
• 3A current Power supply: 110V/60Hz (or 220V/50Hz)
• Actuator speed: 1.6 cm/second (.63”/second)
• Actuator travel: 400mm (15.75”)
• Max. Weight per gate: 300 kgs (660 lbs)
  Max. Width per gate: 3 m (10ft)
• Open/closing running time: programmable (from 0 to 99 seconds)
• Autoclosing duration: programmable (from 0 to 99 seconds)
• Ambient temperature: 5 F - 130 F (-22c- +55c)

• Protection class: IP44
