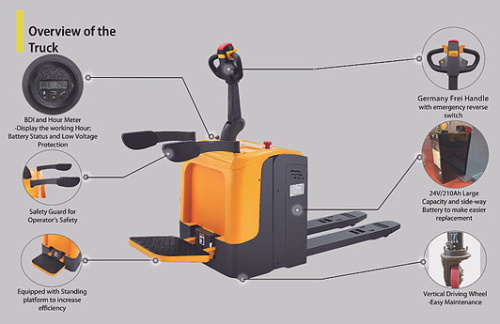

Full Electric Standing-on Riding Pallet Truck - 5500lbs Capacity - 48" x27" Fork - CBD25R-II

• Model: CBD25R-II
• Fork size 48" x 27", with single PU fork wheel
• Fork Lowered Height: 3.2"
• Max. Lift Height: 8"
• Overall Length: 72"
• Overall Width: 30.5"
• Capacity: 5500 lbs
• Travel Speed (Laden/Unladen): 4.35/4.41 mph
• Gradeability (Laden/Unladen): 8%/20%
• Turning Radius: 65.8"
• Battery Type: Lead Acid
• Battery Capacity: 24V/210Ah
• Weight (with battery): 1584 lbs
• 8-10 Hours Charging Time, 8 Hours Working Time
• Strong Gradeability (laden/unladen) : 8% / 20%
• Brushless AC motor, vertical driving motor
• Sideway battery makes replacement very convenient
• Platform with speed sensor, ensure safety driving
• Warranty: One year
• Smooth running, strong load capacity, excellent climbing ability
• Parallel motor mounting on vertical drive wheel ensures convenience for inspection and maintenance
• The structure of motor is water-proof and dust-proof, which can makes the brake and motor more durable and reliable
• The balance wheels loading capacity is adjustable
• Combined balance wheels and driving system increase steadiness, prevent truck from being rocked from side to side
• Widely used in large supermarket & big warehouse
