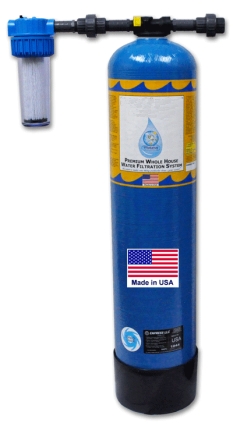

Complete 5-7 Year Whole House
Water Filtration System
The 5-7 Year Whole House Water Filtration System effectively performs for about 500,000 gallons or 5-7 years of use for the average household and is loaded with approximately 45 pounds of high grade NSF® certified water filtration media. It completely removes or significantly reduces Chlorine, Chloramine/Chloramines, sediment, cysts, copepods, VOCs, SOCs, THMs, PAHs, trace heavy metals (i.e., lead, mercury, or iron), MTBEs, atrazine, benzene, xylene, pesticides, insecticides, herbicides, tastes, odors and hundreds of other potential contaminants and harmful chemicals from the water entering your business or home.
It uses an advanced multistage filtration process, ensuring maximum contact time, through NSF® certified high grade water filtration media which is specially blended and layered.
This system also comes with an installation kit which includes a 0.35-micron prefilter used to filter out potential copepods, cysts, sediment and/or particulate matter down to 0.35 microns in size.
ORDER ONLINE NOWOR CALL 1-866-606-3991
Complete System includes:
- (1) 5-7 Year Whole House Water Filtration tank unit
- (3) 4" PVC nipples
- (1) .35 Prefilter housing
- (2) PVC unions
- (2) 1" to ¾" reducer fittings
- (1) .35-micron sediment/particulate/cysts/ copepods pre-filter
- (1) Garden hose adapter
How Does the Complete 5-7 Year Whole House Water Filtration System Work?
Unlike other lower quality systems on the market, our factory-direct systems are loaded with NSF® certified high grade media designed to completely remove or significantly reduce Chlorine, Chloramine/Chloramines, sediment and/or particulate matter, cysts, copepods, Volatile Organic Compounds (VOCs), Synthetic Organic Compounds (SOCs), THMs (Chlorine by-product), PAHs (Chloramine by-product), trace heavy metals (i.e. lead, mercury, or iron), MTBEs, atrazine, benzene, xylene, pesticides, insecticides, herbicides, tastes, odors and hundreds of other potential contaminants and harmful chemicals from the water entering your home. The Complete 5-7 Year Whole House Water Filtration System utilizes a specialized system design which facilitates an advanced 3-Stage water filtration process:
Stage 1 (Pre-Filtration)
The sediment prefilter uses a replaceable cartridge that mechanically filters copepods, cysts and sediment and/or particulate matter down to 0.35-microns. This important first stage filters the sediment or particulate that may be present in the water supply so that it doesn't clog the main filter and reduce water flow and/or filter life. Another key benefit to 0.35-micron prefiltration is that it removes the smaller matter and particles that would otherwise either clog the system or pass through and possibly be undesirably consumed.
Stage 2 (Macro Filtration)
Contains a high grade, medium-granule Virgin Coconut Shell Granular Activated Carbon for additional absorptive capacity of certain particulate, impurities and a wide range of contaminants.
Stage 3 (Micro Filtration)
Contains a high grade, small-granule Catalytic Virgin Coconut Shell Granular Activated Carbon for additional absorptive capacity of certain impurities and contaminants. This media has an expanded surface and porosity which provides extremely high reaction kinetics and absorptive capacity for a wide array of many other undesirable impurities and contaminants.
 Click on Image for Larger ViewORDER ONLINE NOW
OR CALL 1-866-606-3991Water Filtration System Specifications:
- Capacity/Lifespan: 500,000 gallons or about 5-7 years
- Filtration Stages: 3
- Filtration Capability: All systems utilize the same water filtration stages and are designed to completely remove or significantly reduce chlorine, chloramine(s), sediment and/or particulate matter, cysts, copepods, Volatile Organic Compounds (VOCs), Synthetic Organic Compounds (SOCs), THMs (chlorine by-product), PAHs (chloramine by-product), trace heavy metals (i.e., lead, mercury, or iron), MTBEs, atrazine, benzene, xylene, pesticides, insecticides, herbicides, tastes, odors and hundreds of other potential contaminants and harmful chemicals from the water entering your home.
- Number of Bathrooms: 1-5
- Service Flow Rate: 8 - 10 gpm (30.3 - 37.8 L / min). Please note that a typical household requires a service flow rate of 6gpm.
- System Plumbing Size: All systems are shipped Ready-To-Install including necessary fittings for 3/4" (standard) and 1" plumbing installations.
- Filtration Media: Utilizes NSF® certified high grade water filtration media. Incorporates the latest advancements in filtration media technology and proprietary media layering techniques.
- Pre-filter: 0.35-micron pre-filter used to filter out potential copepods, cysts, sediment and/or particulate matter down to 0.35 microns in size.
- Operating Pressure Range: 10 – 125 psi (0.7-8.8 bar)
- Operating Temperature Range: 35 – 125° F (4-52° C)
- pH Range: 5 – 12 pH
- Iron (Ferric) Max.: 0.2 ppm (0.2 mg/L) (dissolved only)
- Total Dissolved Solids (TDS): 2,000 ppm
- Hardness/Water Softening: Does not soften or reduce hardness.
- Hydrogen Sulfide (H2S/Rotten egg odor): < 0.5 ppm (0.5 mg/L)
- Oil Tolerance: < 1 ppm
- Feed Water Silt Index:5
- Feed Water Turbidity: up to 1 NTU
- Tannins: < 0.5 ppm (0.5 mg/L)
- Iron Bacteria: None
- Required Installation Space: approx. 48" high x 36" wide x 12" deep. The tank size is 10" diameter x 44" height (11.5" at black base/stand).
- Total Weight: approx. 64 lbs with installation kit.
