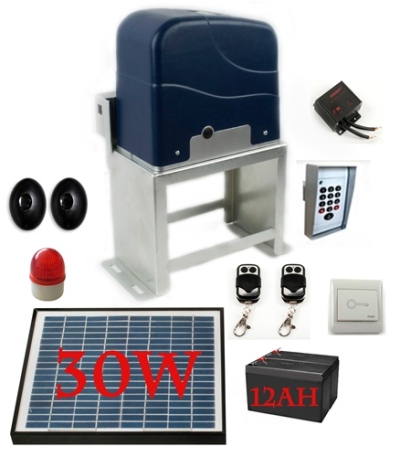

Complete 3/4 HP Gate Opening Kit
w/ 30W Solar & Charger Controller Designed with a 120V AC (3/4 HP equivalent)
motor, this chain driven sliding gate opener provides exceptional
starting torque and continuous operation, making it ideal for most
applications. Opens gates up to 1,400 lbs or 60 Ft in length.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Features:
Powerful 24V DC Motor opens gates up to 1400 lb or 60 Ft in length
-
Soft start and Soft stop function
-
2 Remotes included
-
User programmable and user erasable remote codes
- RF hopping code technology prevents your remote code being accessible to others
- Auto-Close Feature (0, 30, 60, 90 seconds)
- Power Supply: AC 120V/DC24V (compatible with a solar power source of energy)
- Operating Time: 0 - 44 seconds
- For your safety, this model will stop and reverse if is
encounters an obstruction on closing and stop when it encounters an
obstruction on opening
- Manual key release design for emergency purposes
- Pedestrian mode
- Included accessories: wireless keypad LM105, photocell LM102, alarm lamp
LM140, 30W solar panel LM109, 7AH back up batteries, wall push button
LM147, solar charger controller
ORDER ONLINE NOW OR
CALL 1-866-606-3991  Specifications:
- Power supply: 120V/60HZ or 230V/50HZ
- Motor: 24VDC
- Absorbed power: 180W
- Gate moving speed: (7.9“/second) 20 cm/second
- Max gate weight: 1400LB/1000KGS
- Max torque: 12Nm
- Environmental conditions: from -15°C to +40°C
- Protection class: IP44
- Dimensions: 46.5×29.5×50 CM
ORDER ONLINE NOW OR
CALL 1-866-606-3991

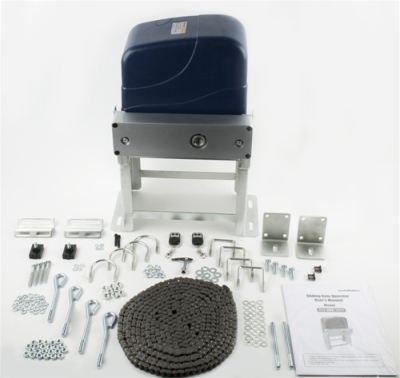

What's Included:
- Sliding Gate Opener Unit
- Alarm Lamp
- Photo Cell
- Push Button
- Wireless Keypad LM105
- Solar Charger Controller
- 30W Solar Panel (10W + 20W solar panel)
- 2 Batteries 7AH
- 20 Ft Chain
- Mounting Base
- 2 Remotes
- Manual with step by step installation instructions
- Full accessories and mounting hardware for easy installation
