GO GREEN WITH THE
Brand New 400 Watt
Wind Turbine Generator Kit
Wind
is in nature inexhaustible energy, but also not pollute the environment
is one of the energy. Changing the wind energy to power energy is used
in industry production and normal life, which is human ideal energy
acquisition modes.This Wind Turbine Generator includes
a high efficiency motor to get the most from the turbine.This turbine
comes with one of the best warranties in the industry.

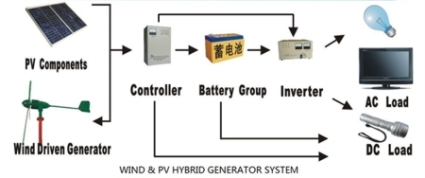

Wind
power as the drive rotates the generator to produce electricity.
Through a commutating process, the electricity charges up the storage
battery and then are inverted from DC to AC 220V/50Hz by a power
inverter that can be used in electric appliances such as lighting, TV,
radio, and fans etc.

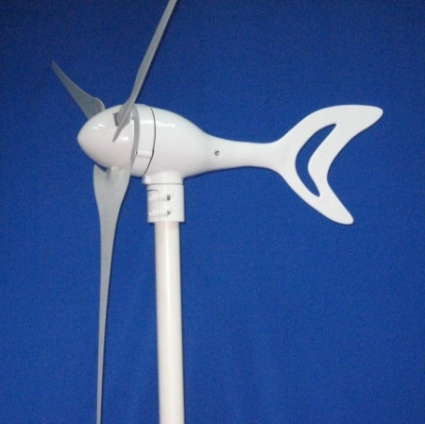

This
wind generator turbine is small yet versatile turbine and can produce
up to 400 Watts. It features a special coating that protects the
generator, making it suitable for locations. The turbine begins to
supply power in wind speeds as low as 15m/s.
ORDER ONLINE NOW
OR CALL 1-866-606-3991
Brand New in box
CE Certificate
ISO9001:2000 Quality Certification
RoHS Certification
Large power, low volume, high efficiency
400 watts maximum output
Carbon fiber blades, high efficiency of anti-wind ability,move mutely and steadily
Blades with the ability of automatically stall protection under strong wind
ORDER ONLINE NOW
OR CALL 1-866-606-3991
Specifications
-
Rated power: 300W
-
AC
voltage: AC 12V/24V（We stock 12V and 24V modal for your choose. Please
email us you want the 12V or 24V modal after you pay for the item
-
Rated current: 25A/12.5A
-
Rated speed: 1850r/m
-
Max power: 400W
-
Number of blade: 3 pcs
-
Starting wind speed: 3.5m/s
-
Cut-in wind speed: 3.5m/s
-
Cut-out wind speed: 18m/s
-
Security wind speed: 15m/s
-
Rated wind speed: 12.5m/s
-
Engine: Three-phase permanent magnel AC generator
-
Rotor diameter: 1160mm
-
Blade material: Carbon fiber
-
Output line anti-winding device: Overall three-phase commutator
-
Over-speed wind protection: Tip stall protection + turned protection + Electromagnetic brake
-
Life span:20 years
-
Equipment surface protection: Aluminum oxide + plastic coating
-
Working temperature: -45°C-70°C
-
Package dimension: 72cm×40cm×22cm
ORDER ONLINE NOW OR CALL 1-866-606-3991
Features:
-
Brand New in box
-
CE certificate , ISO9001:2000 Quality Certification
-
RoHS Certification
-
Large power, low volume, high efficiency
-
Carbon fiber blades, high efficiency of anti-wind ability,move mutely and steadily
-
Blades with the ability of automatically stall protection under strong wind
-
400 watts maximum output
-
Weather proof industrial strength design
-
Designed to perform in low wind speeds with low noise aerodynamic carbon fiber blades
-
-
-
Built-in overspeed protection
-

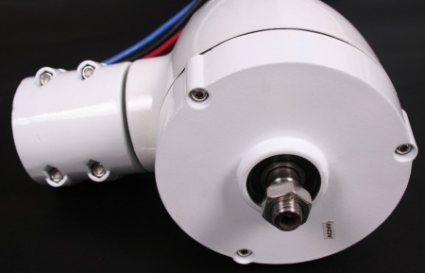

The generator is adopted permanent magnet --NefeB, which has small volume and high efficiency,the
expertise use special structure of the ainicos and the electromagnetic
circuit to make the generator start in tiny starting torque and the
overload to be unique.
-
The crust is adopted ultrafort alloy steel,microdiecast,the surface is used the art of electrostatic painting to make the product in good weather resistance to prevent rust.
-
The workpieces of the complete appliance are used stainless steel materials quality.
-
The blade is adopted superstrethened complex material or engineering plastics.
-

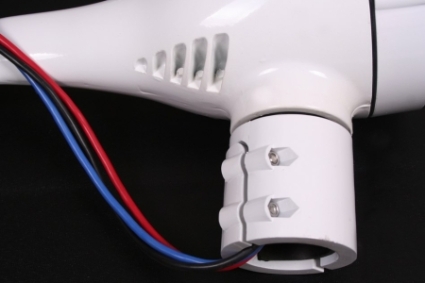

The slip ring
is used the construction,high temperature lines,whose stability is
unique and the output lines of the wind turbine will never be
intertwined.
-
The heat removal system is distinct,the tail adjusts the direction accurately and has the design of keeping steady.
ORDER ONLINE NOW
OR CALL 1-866-606-3991

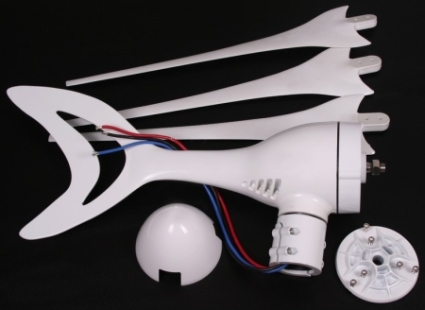

INCLUDES:

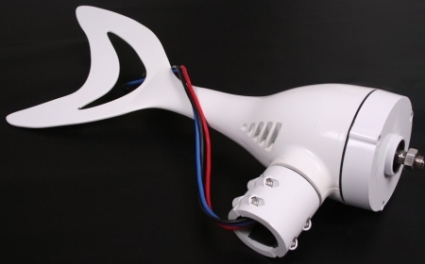

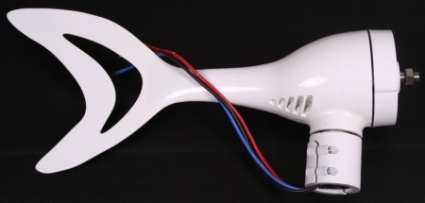

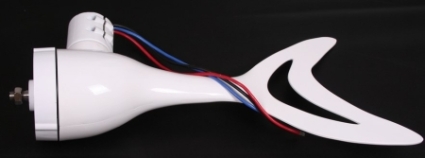

- Wind turbine
- 3 pcs of blades

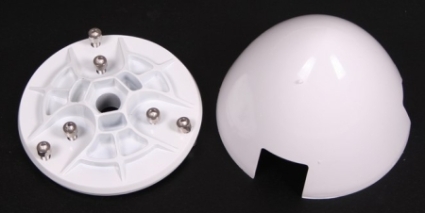

- wind turbine hub
- screw bolts and nose cone
ORDER ONLINE NOW
OR CALL 1-866-606-3991
WARNING !!!
Rotating blades present the most serious mechanical hazard. The blades may be moving at velocities over 275 miles per hour (440 km/hr). At this speed, the tip of a blade is nearly invisible and can cause serious injury. Under no circumstances should you install the turbine where a person could come in contact with moving rotor blades.
The installer of these blades is solely responsible for the use or misuse of these blades. We assume no liability for ANY injuries caused by these products.ORDER ONLINE NOW
