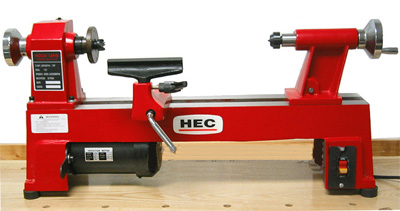

5 Speed Wood LatheOrder Online or Call1-866-606-3991Features:
- Powerful 1/2HP, 1725 rpm motor.
- Turns objects larger than 6" in diameter to create a variety of decorative projects.
- Easy access to five speed controls (760, 1100, 1600, 2200, 3200 rpm) reduces down time.
- All-cast-iron construction provides stability and is extremely durable.
- Ball-bearing live center.
- Includes 3" face plate, 6" tool rest.
- Heavy-duty, steel knockout bar.
- On-off switch is located close to work zone for convenient operation.

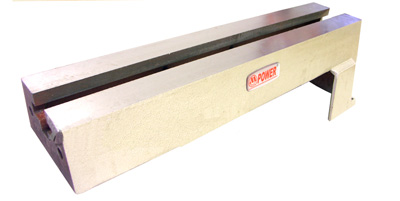

- This auction only - includes a bed extension that extends distance between center from 18'' to 39''
Specs: - Motor (Induction):1/2 HP, 1 Ph 120V
- Swing Over The Bed (in):10" (254mm)
- Working Distance Between Centers (in):18" (458mm) 39" w/extension MC1039
- Outboard Turning (in):7 ½" (191 mm)
- Speeds (RPM):5 Speed 760, 1100, 1600, 2200, 3200
- Spindle Nose (in x T.P.I.):1"x 8 RH thread
- Hole (completely through spindle/in):3/8" (10 mm)
- Headstock Taper:MT-2
- Tailstock Taper:MT-2
- Hole Through Tailstock (in):3/8" (10 mm)
- Tailstock Spindle Travel (in):1 ½" (38 mm)
- Overall Dimensions (HxWxL/in):33 ¼"x11"x7 ½"
