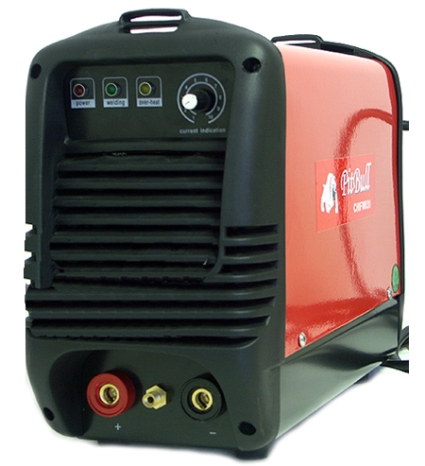

220V 190 AMP Gas /
Electric Dual Welder Flux
 ORDER ONLINE NOW
OR CALL 1-866-606-3991
You will be extremely excited once you receive the220V 190 AMP Gas / Electric Dual Welder Flux because it has what other competition does NOT! Sure there are others out there claiming or selling models that look the same, however the quality is just not there! Every single unit comes with a one year manufacturer parts warranty that is fully backed leaving you with NO RISK involved!
ORDER ONLINE NOW
OR CALL 1-866-606-3991
Features:- USED FOR WELDING STAINLESS PLATE, CARBONIC STEEL, ALLOY STEEL OR TITANIUM PLATE
- Adopt advanced inverter technique "IGBT" power implements with tiny frame, tight construction, light weight
- The electrical system is got the ANTI-REACTION CURRENT, THE OUTPUT CURRENT DECREASE THEN THE WELDING CURRENT GET STEADY
- BOTH D.C ELECTRICAL ARC WELDING & D.C ARGON WELDING CAN BE USED. ONLY EXCHANGE WELDING TORCH, CONNECT REMOVE, OR CUT DOWN ARGON. THE PANEL OPERATION IS THE ADJUSTING OF THE CURRENT.
- ADOPT TOUCH ARC-LEADING TECHNIQUE, REMOVE HIGH- FREQUENCY ELECTRIC CIRCUIT, TO AVOID THE INTERFERENCE.
- ADOPT THE THERMAL OVERLOAD PROTECTION, WHEN THE WELDING MACHINE IS OVER-THERMAL, IT WILL STOP AUTOMATICALLY WITH AN ALERT INDICATION.
Specs:
- No gas, CO2, or gas operation.
- Input voltage: 230V/60Hz AC, single phase.
- Welding current: 60 to 190 amps.
- Duty cycle: 10% @ 180amps.
- 60% @ 74amps.
- 100% @ 60 amps.
- Max open circuit voltage: 37v.
- Wire capacity:
- .031 (0.8mm) steel & stainless steel.
- 0.030" to 0.039" (1.0mm) aluminum.
- 0.047(1.2mm) flux core.
- Variable feed speed control.
- Torch with full ON/OFF safety control.
- Automatic thermal safety protection.
- Easily converted to gas operation.
- Simple to operate-fan cooled.
- Weld mild steel, aluminum, stainless steel and cast iron (must use correct wire and gas).

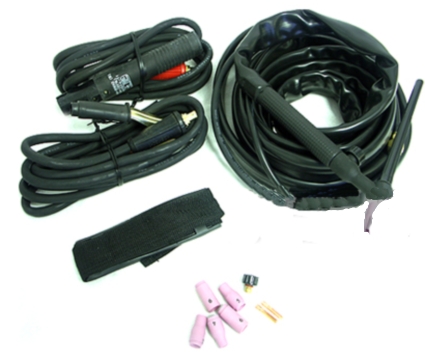

- Include welding mask, chipping hammer/brush. torch, tip, ground cord with clamp.
