The 1000LB Motorcyle Carrier Manual Lift is a great way to carry your 1000lb. motorcycle on the back of your RV, Truck, or fifth wheel. Designed by our engineering team with AutoCAD and manufactured in the USA in our plasma CNC facility. No details have been over looked. The carrier uses the industries only “Sway Lock” technology to ensure the motorcycle does not sway during travel. The “Sway Lock” makes strapping the lift to the vehicle unnecessary. The “Sway Lock” pin is ¾” and also works as a safety pin taking pressure off of the jack. Everything on the Manual Hydraulic Lift is CNC cut to a ten thousandths of an inch. Nothing is hand cut. This allows us to custom create each piece which gives it the strength and stability it needs.

When you choose the Motorcyle Carrier Lift there is no attachments that cost extra money. Everything is included. The lift has been engineered to lower to within 1” from the ground allowing us to build the loading ramp right on the storage platform. This means there are No Extra Parts needing to be stored or carried. You also do not have to deal with trying to drive an 800 lb. motorcycle up a steep incline. The platform is 8” across and 81” long, which makes it large enough for the widest tires and longest bikes. The hauler also includes brackets for storing the jack handle. The 1000lb RV motorcycle carrier has a standard 2” hitch receiver to pull a small trailer or flat tow a car up to 5,000lbs with the addition of the three point hitch. Break lights and turn signal lights are included but not installed.

The Carrier Lift has a carrying capacity of 1,000 lbs. The hauler comes powder coated and ready to go. The hauler is built using 2” solid steel in the tong and fully welded gussets to hold the tong to the upright for added strength and support. The carrier has over 18” of travel and the motorcycle platform will be raised to a full 4” above the hitch for plenty of ground clearance. The main upright tube has two extra holes for extra tie down stability. Four tie downs loops are integrated into the design for both added strength and stability. This is much stronger and safer than simply welding tie down brackets on.

Features:

• Color Powder Coated Black
• Sway Lock system
• Plasma CNC quality
• Made in the USA
• Can be left or right side load
• No extra parts to lug around
• 1,000 lb Capacity
• Built in ramp
• 3 ton lift jack
• Comes fully painted
• Added hooks and holes for easy strapping
• 3” Main upright Tube
• 2” Receiver
• Reinforced 2” Solid steel tong
• The 1000M weights - 280lbs
• Lowers to within 1” of the ground
• High Strength grade 8 hardware
• Five year warranty on manufactured parts

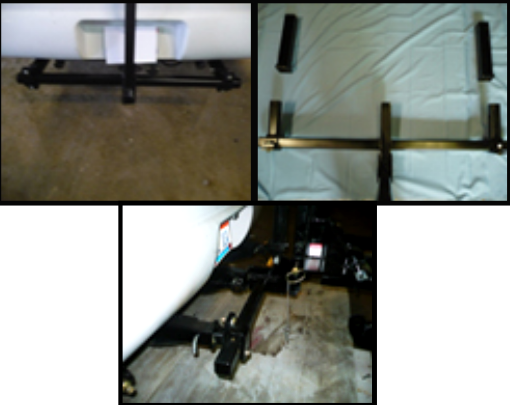

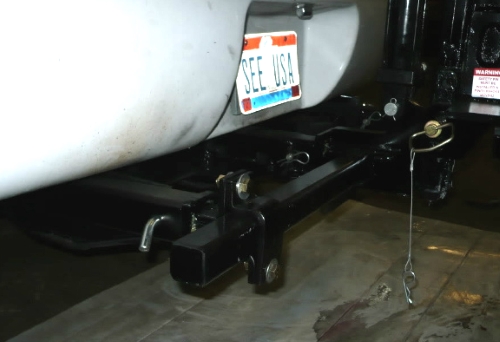

• Must have 3 point hitch to flat tow a vehicle or must have Class 5 - 2 1/2" 1000 pound capacity tongue weight receiver hitch (ADDITIONAL COST)
• UNIT DOES NOT COME WITH A WHEEL CHOCK
• If receiver hitch is added to pull trailer, that hitch cannot handle any tongue weight
